* EX DEMO: The item has been used for demos with/on animals . It comes with a full warranty * (1 Available)
* Set Includes: Oxyvet 3 Oxygen Concentrator (213175) and Mounting Plate (213304) *

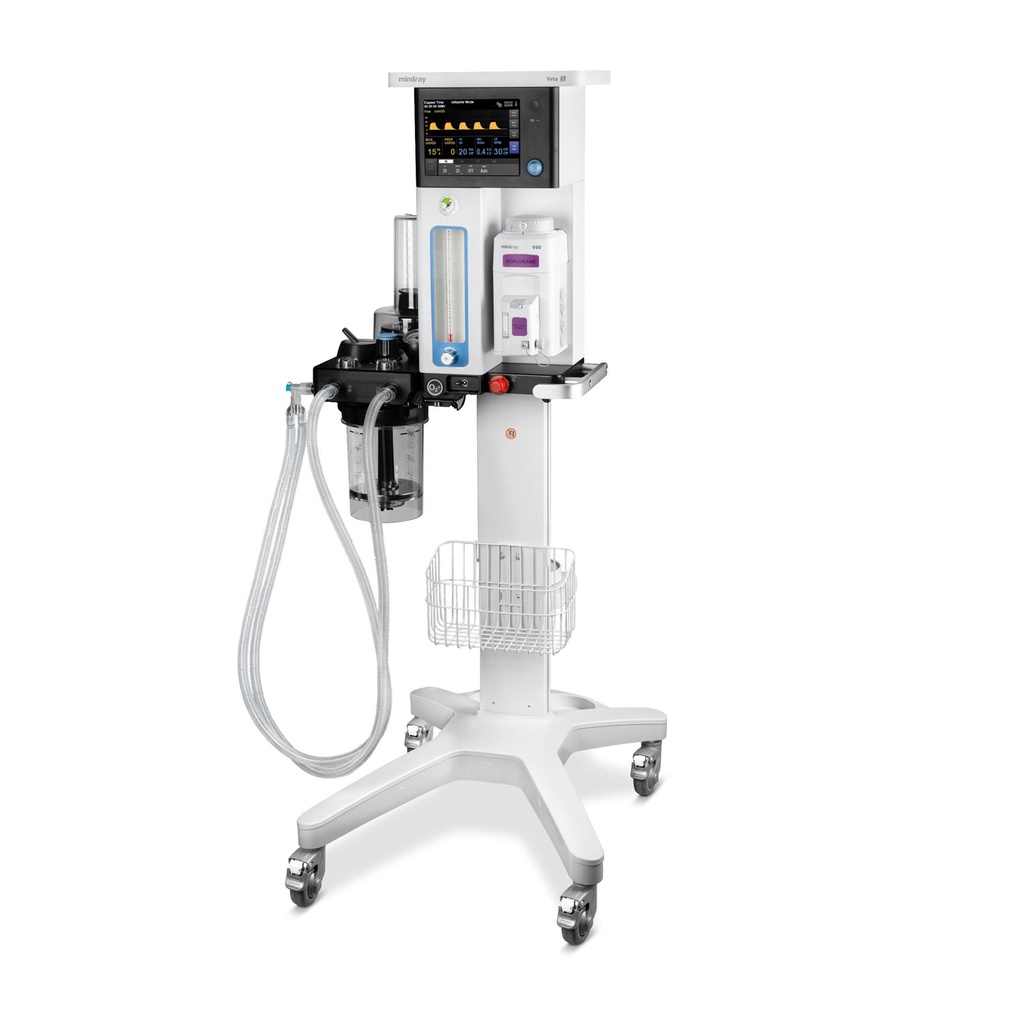

The Veta 3 is a state-of-the-art anaesthetic device specially developed for veterinary medicine. The compact and visually appealing device is characterised by a clear structure of all components. With the optionally available mounting plate, an oxygen concentrator can be installed on the mobile stand.
The Veta 5 Advanced is also characterised by its integrated ventilator. Ventilation is implemented via an electronic turbine, which means that no drive gas (e.g. from an external compressor) is required. The main cause of serious aneasthesia incidents in veterinary practices is the patient's unnoticed apnea. Routinely controlled ventilation helps to drastically minimise this risk of anaesthesia and thus ensures optimal safety for your patients.
Anaesthesia machine equipment (Veta 3 and Veta 5 Advanced)
- O₂ flow meter (0.1 – 4.0 l/min)
- V60 isoflurane vaporiser, key filled
- Oxygen bypass (O₂ flush)
- Absorber lime container with quick-change system
- Pressure gauge to display the system pressure
- Infinitely adjustable pressure relief valve
- External fresh gas outlet for open system
- Automatic leak test at start (Veta 5 Advanced only)
- Holder for anaesthetic gas filter, on the Veta 5 Advanced with integrated scales
- Accessory set including patient hose, breathing bag and bacteria filter
- Optional mounting plate for oxygen concentrator (Part No. 213304)
Integrated ventilator (Veta 5 Advanced only)
- Electronically controlled, no compressed air source required
- All ventilation parameters on a large color display
- Patient safety through acoustic and visual alarms
- Automatic ventilation volume calculation based on weight
- Tidal volume from 5 ml, for precise ventilation of the smallest patients
- Patients from 0.5 - 150 kg can be ventilated
- Ventilation modes: standby, manual and spontaneous
Four different ventilation modes:
-
Volume-supported ventilation (VS)
-
Volume Controlled Ventilation (VCV)
-
Pressure Controlled Ventilation (PCV)
-
Synchronised Intermittent Mandatory Ventilation (SIMV)
Technical data ventilator
- Ventilation rate: 2 – 60 bpm
- Tidal volume: 5 – 1,500 ml
- Maximum ventilation pressure: 3 – 50 cmH₂O
- Trigger pressure -20.0 – -0.2 cmH₂O
- 8" touchscreen with 1,024 x 768 resolution
-
Mains and battery operation, battery life up to 2 hours
-
Features like Veta 3 plus ventilator
- Dimensions (in cm): W 62 x H 138 x D 69
- Weight: approx. 43 kg
