Motic's new sCMOS camera was designed by German developers and provides a new approach to manufacturing quality, technical precision and lightweight construction. This camera opens the door for new applications. The accelerated data readout (rolling shutter) also allows working on fast phenomena.

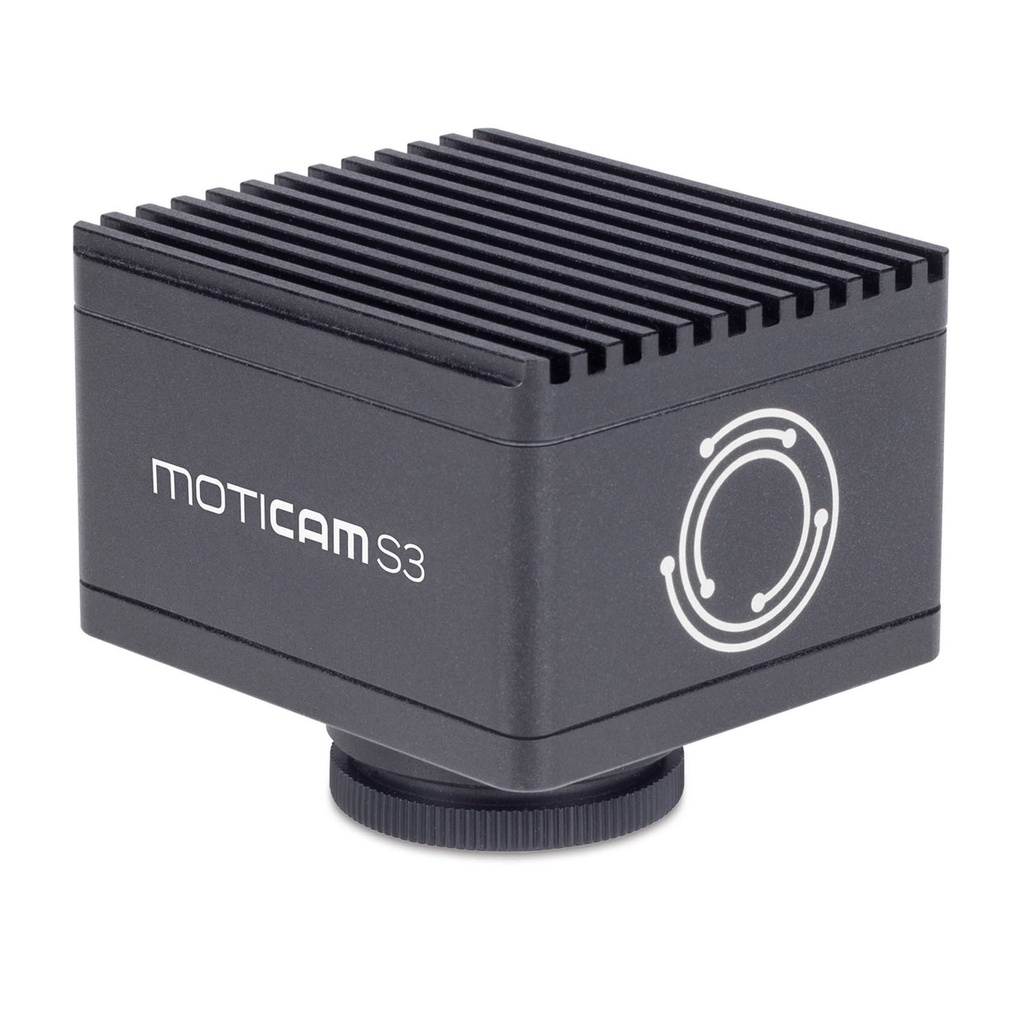

The Moticam S3 offers a medium resolution of 3 MP and thus a balance between speed and resolution. The "backlight" technology of the sCMOS sensor guarantees "state of the art" imaging for professional results.
Technical specifications:
- Sensor type: sCMOS
- Sensor format: 1 / 2.8 "
- Active sensor area: 6.44 mm (diagonal)
- Resolution: 3 MP
- Live image (via USB): 2,048 x 1,536, 1,920 x 1,080
- Pixel size: 2.5 x 2.5 μm
- Scan mode: progressive scan
- Shutter mode: rolling shutter
- Data transfer: USB 3.1
- Maximum refresh rate (fps): 2,048 x 1,536 @ 60 fps, 1,920 x 1,080 @ 60 fps
- Exposure time: 21 μs to 2 s
- Sensitivity: 600 mV (G) @ 1/30 sec
- Support: TWAIN, SDK and DirectShow drivers
- Operating systems: Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
- Minimum requirements for your computer: 2 GHz dual core; 2 GB RAM memory; at least 512 MB video memory
- Thread: C-mount
- Functions: Still image and video, live and still image measurements, image improvements,
- White balance, automatic and manual exposure time, individual calibration
- Scope of delivery: CS-Ring, USB 3.1 cable, 4-point calibration aid, Motic Images Plus Software 3.0 for PC / OSX / Linux
