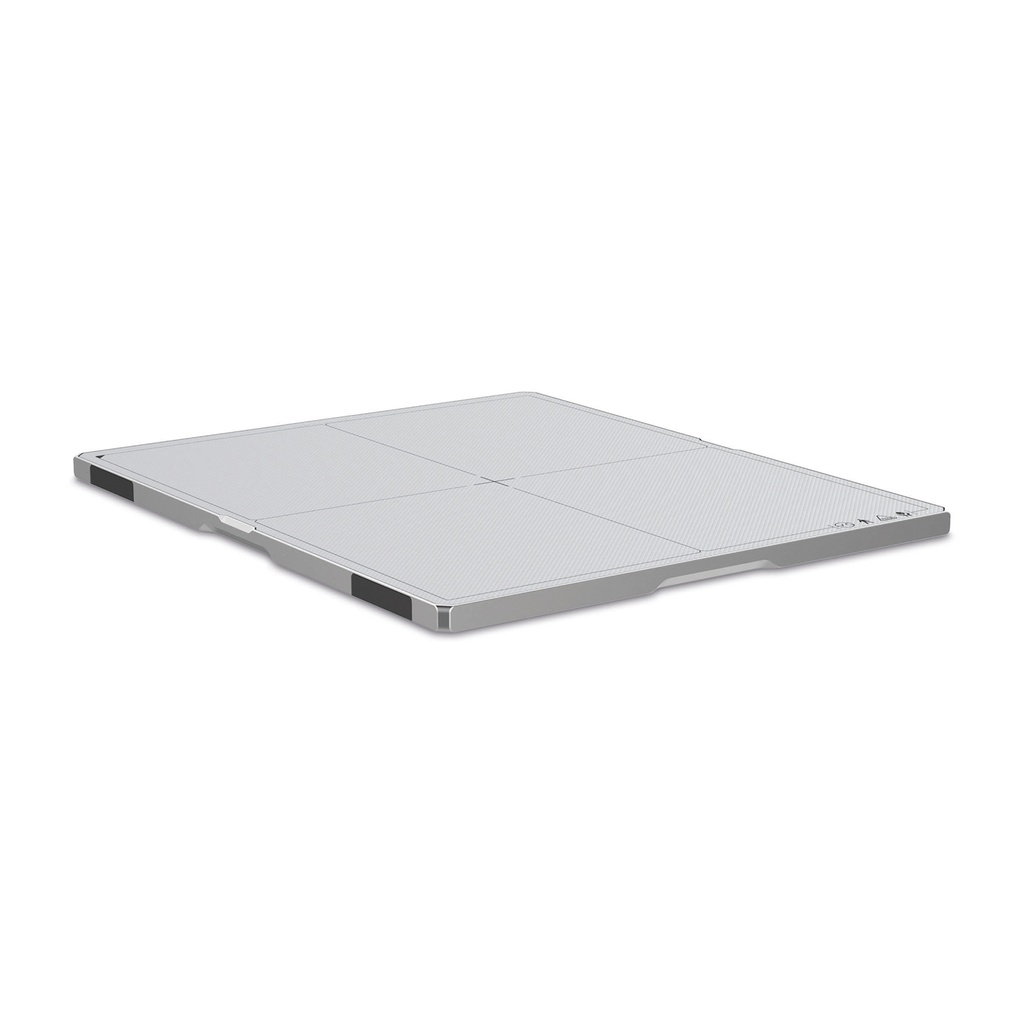

DigiVet DR Equine wireless X-Ray Panel

Versatile portable flat panel detector for digital X-Ray imaging for use in mobile equine practice.

This device is a portable flat panel detector with an active area of ​​25 x 30 cm for digital X-Ray imaging in various applications.

Its 124 µm pixel TFT sensor enables high-resolution images and its WLAN communication system offers fast, wireless transmission speed. X-Ray images can be transferred directly to a computer or laptop with a WiFi connection.

In addition, the reliable Anytime ™ automatic X-Ray exposure detection enables users to conduct examinations with any type of X-Ray system.

• Active area of ​​25 x 30 cm (10 x 12 ")
• Highest resolution with CsI PLUS scintillator
• High spatial resolution with a field size of 124 µm for each pixel
• Fast, wireless data transmission via dual band (2.4 GHz and 5 GHz)
• Stable and reliable automatic exposure detection (Anytime ™)
• Direct communication with smart devices (Inside AP ™)
• Viewer software runs on the Windows ™ operating system (VXvue ™)
• Areas of application: horse and cephalometry

Technical specifications:

• Scintillator: CsI (DQE technology for reduced dose)
• Pixel pitch: 124 µm x 124 µm
• Resolution:> 4 lp / mm
• Active area: 2,048 x 2,560 pixels
• Analog-digital conversion (AD conversion): 16 bit
• Grayscale: 16,384 levels
• X-ray voltage range: 40 - 150 kVp
• X-ray generator interface: Automatic trigger: AED (Automatic Exposure Detection) mode
• Wireless interface: IEEE 802.11ac (2.4 GHz / 5 GHz dual band)
• Image recording time (via cable): 1.5 sec.
• Image recording time (via WiFi): 3 sec.
• Battery: Lithium Ion, 3,400 mAh, 8 hours standby or approx. 750 recordings
• Dimensions (in cm): L 28.7 x W 35 x H 1.5
• Weight: 2.1 kg
