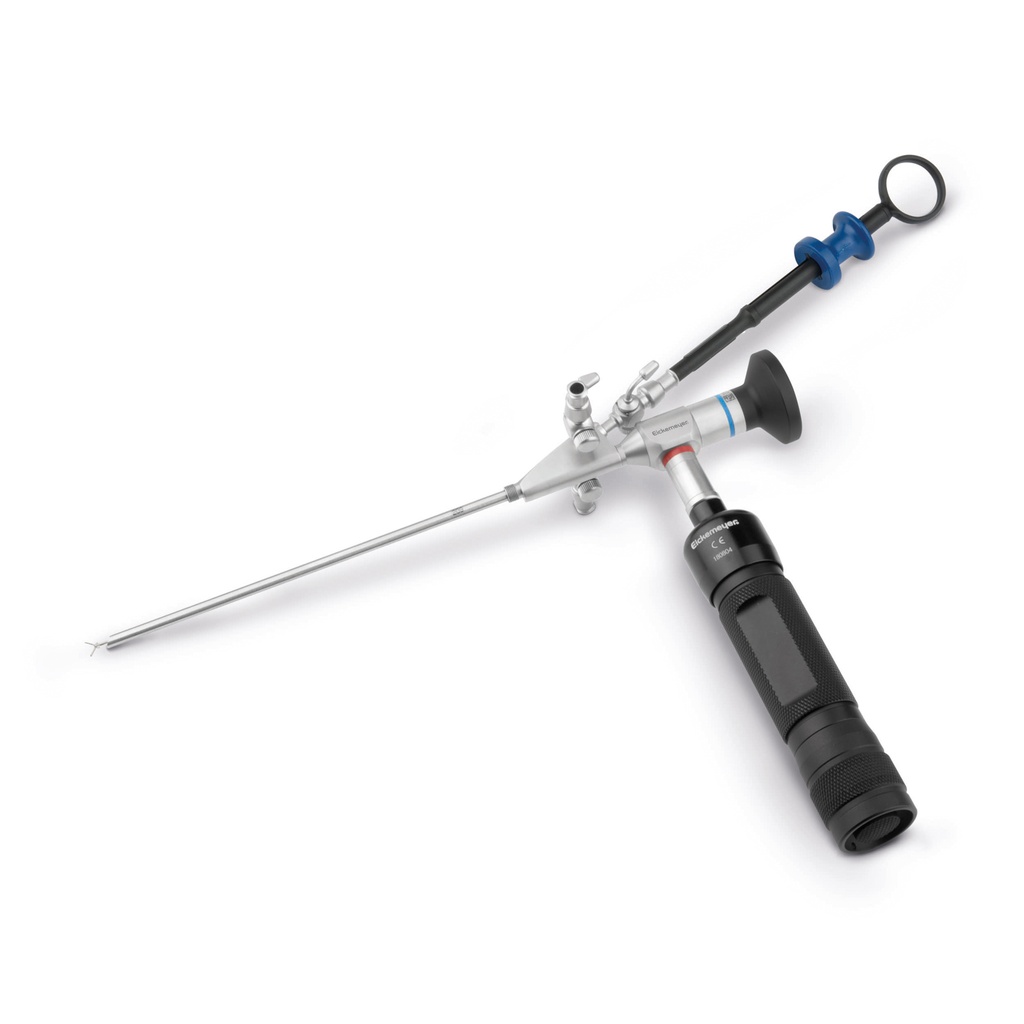

EickView Compact Endoscope

The specially developed EickView compact endoscope offers with its small outer diameter of only 3.8 mm and the integrated working channel the optimal solution for rhino, tracheo and vaginoscopy in small animals.

• Versatile (rhinoscopy, tracheoscopy, vagino / cystoscopy)
• Perfect connection due to homogeneous and minimally invasive distal end through fusion of working shaft and endoscope
• Maximum mobility thanks to the self-sufficient working principle of the screw-on LED battery light source
• No dirt deposit due to homogeneous distal end
• Integrated working channel: Ø 1.3 mm
• Reduced outer diameter: 3.8 mm
• Working length: 14 cm
• Viewing direction: 30 °
• Opening angle: 90 ° (wide angle)
• Foreign body forceps: Ø 1.0 mm, L 25 cm
• Long-life battery and replacement battery with an operating time of 4 hours each
• 3 adjustable light levels
• Two integrated rinsing taps enable constant insufflation and supply of rinsing liquid
• The endoscope has 3 different connections: Storz, Wolf, ACMI
• Eyepiece: DIN eyepiece allows smooth connection to all common C-mount cameras
• Simple Reprocessing – Can be immersed in disinfectant solutions (e.g., Gigasept FF, Item No. 307315)
• Sterilization Notes – Not autoclavable, suitable for sterilization with ethylene oxide

Set includes:

• EickView compact endoscope incl. screwable otoscope attachment
• LED hand-held light source including charger and spare battery
• Foreign body forceps
• 2 cleaning brushes
• Carrying case

Complete set, consists of:

• EickView compact endoscope incl. screwable otoscope attachment
• LED hand-held light source including charger and spare battery
• Foreign body forceps
• 2 cleaning brushes
• Carrying case
