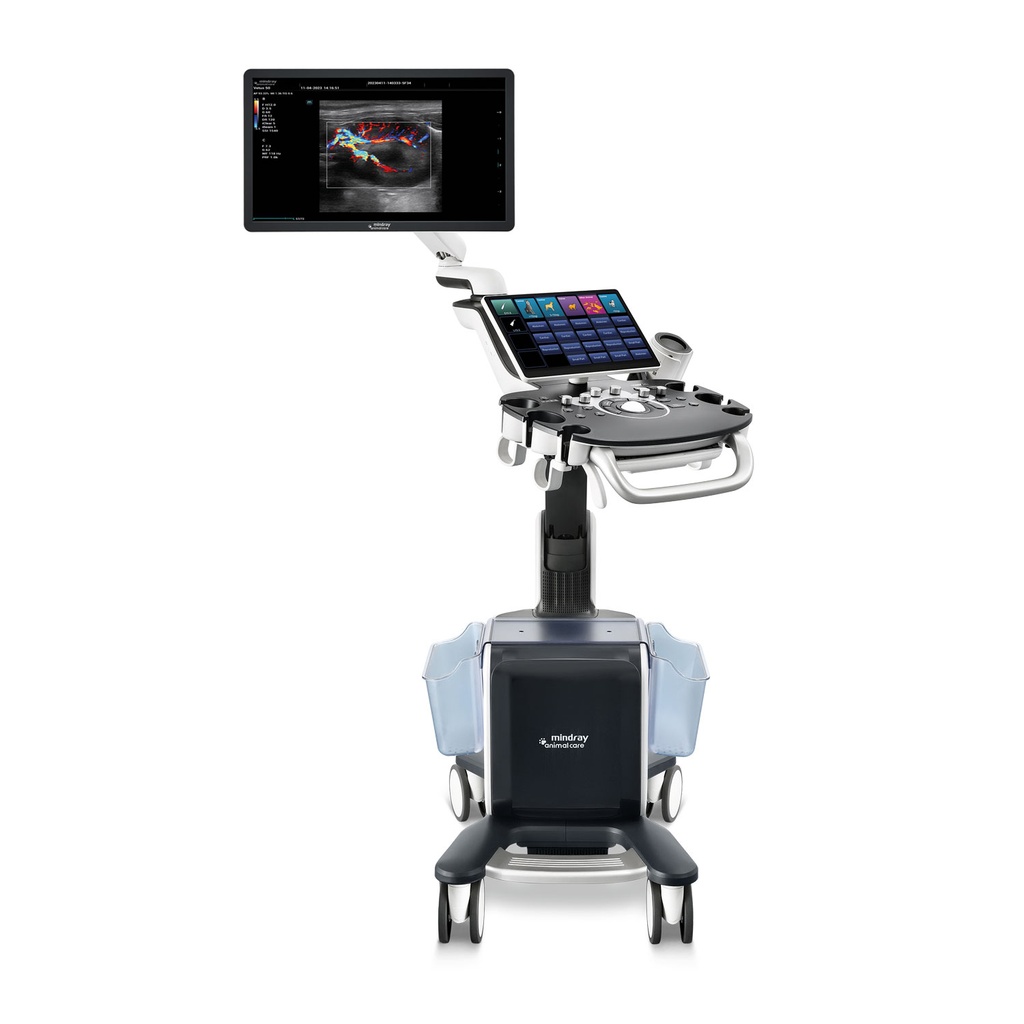

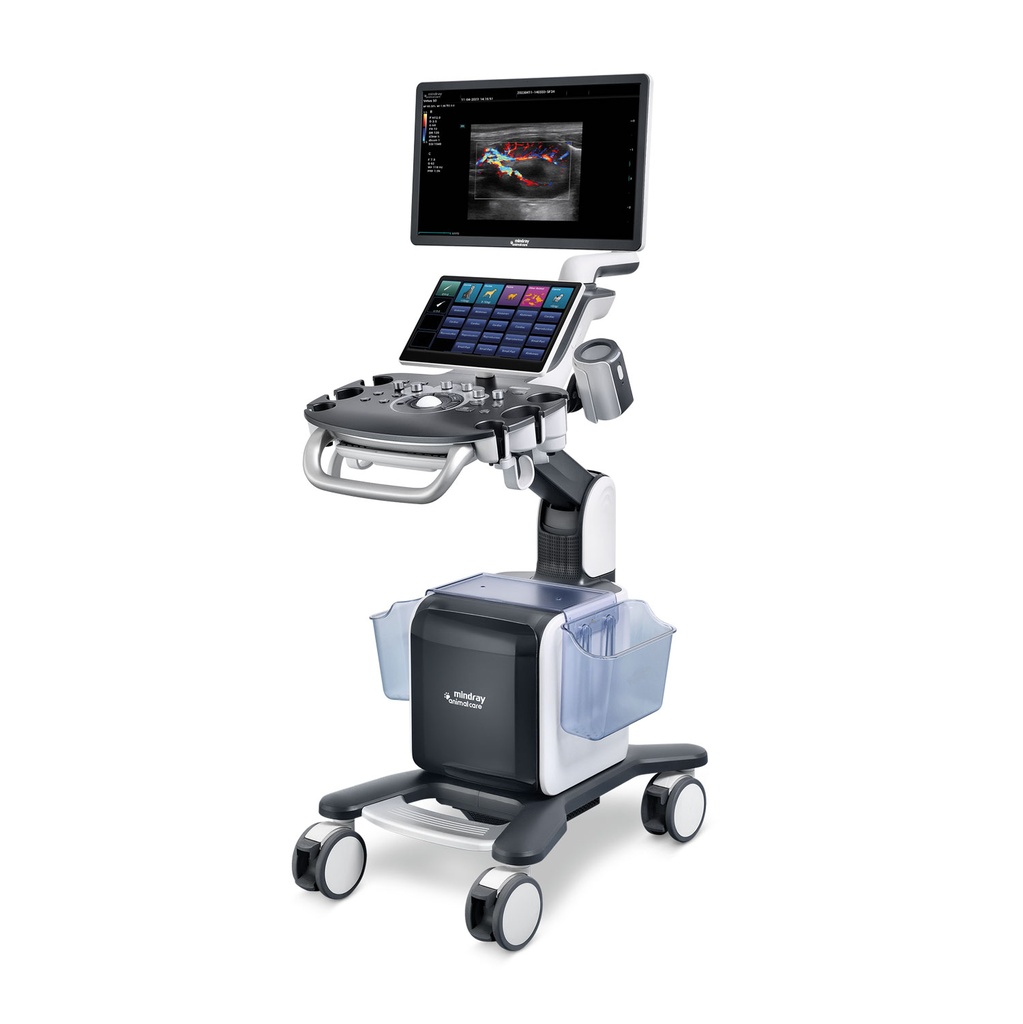

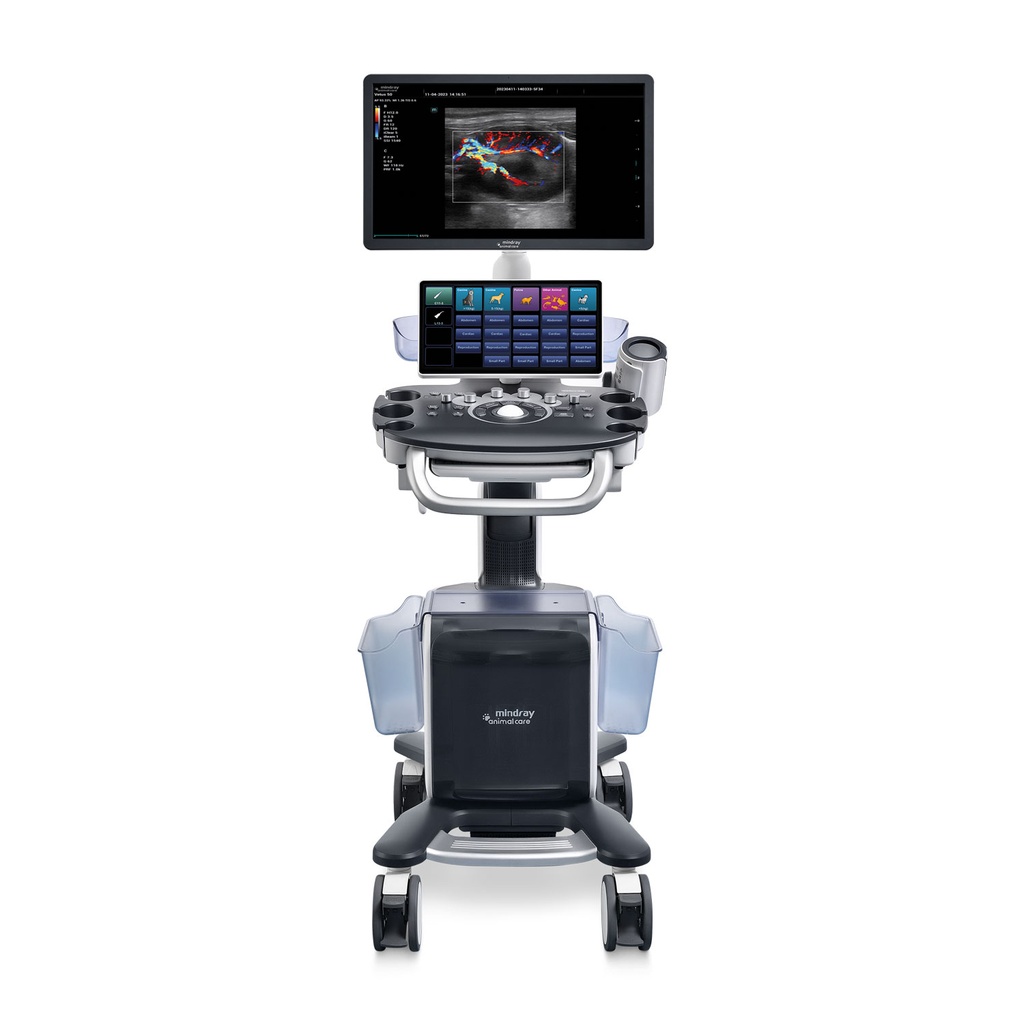

Ultrasound Machine Vetus 50

The Vetus series opens up a new dimension in terms of image quality. The devices, which have been specially developed for use in veterinary practices, are characterized by dedicated vet software and the clearly structured presets depending on the animal species and weight ensure the greatest possible efficiency.

High-end technology combined with clear application

The Vetus 50 is a powerful device with the latest technologies for abdominal diagnostics of small animals and pets.

Special Features

• ZST+ and ComboWave Technology: Processing of Acoustic Signals
• 3T technology: more frequency bandwidth
• iScanHelper: Explanation of the sound technology and display of the ultrasound image with labeling
• Quick selection of probes and working modes
• Reduced number of keys for a better overview
• Presets by animal type and weight
• Two high-quality ultrasound probes
• Easy patient management and archiving
• Very quiet operation at >26 dB (25 °C)

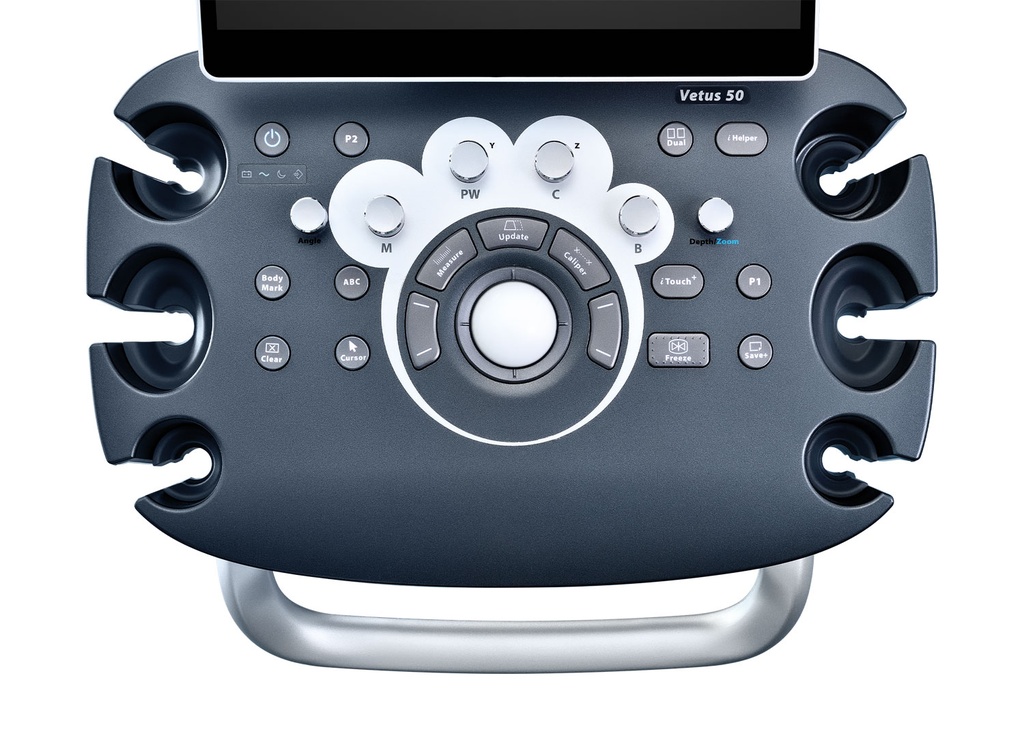

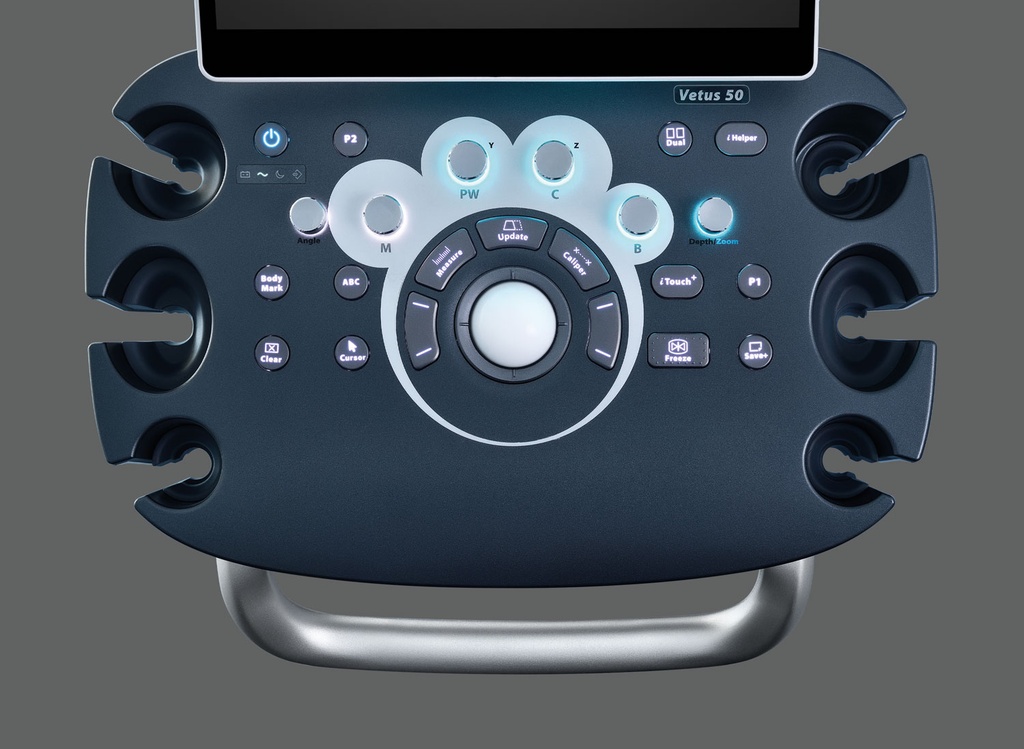

• Protected, extendable and washable keyboard

Adjustment aids for optimal working

• iStation™: easy patient data and report management
• iClear™: optimized image resolution
• iZoom™: Full screen mode
• iBeam™: improved real-time image resolution
• iTouch™: automatic image enhancement
• 8-fold TGC: manual compensation of signal strength over the entire penetration depth
• THI and PSH: Artifact Reduction and Improved Contrast Resolution
• Color, PW and Power Doppler

Specifications

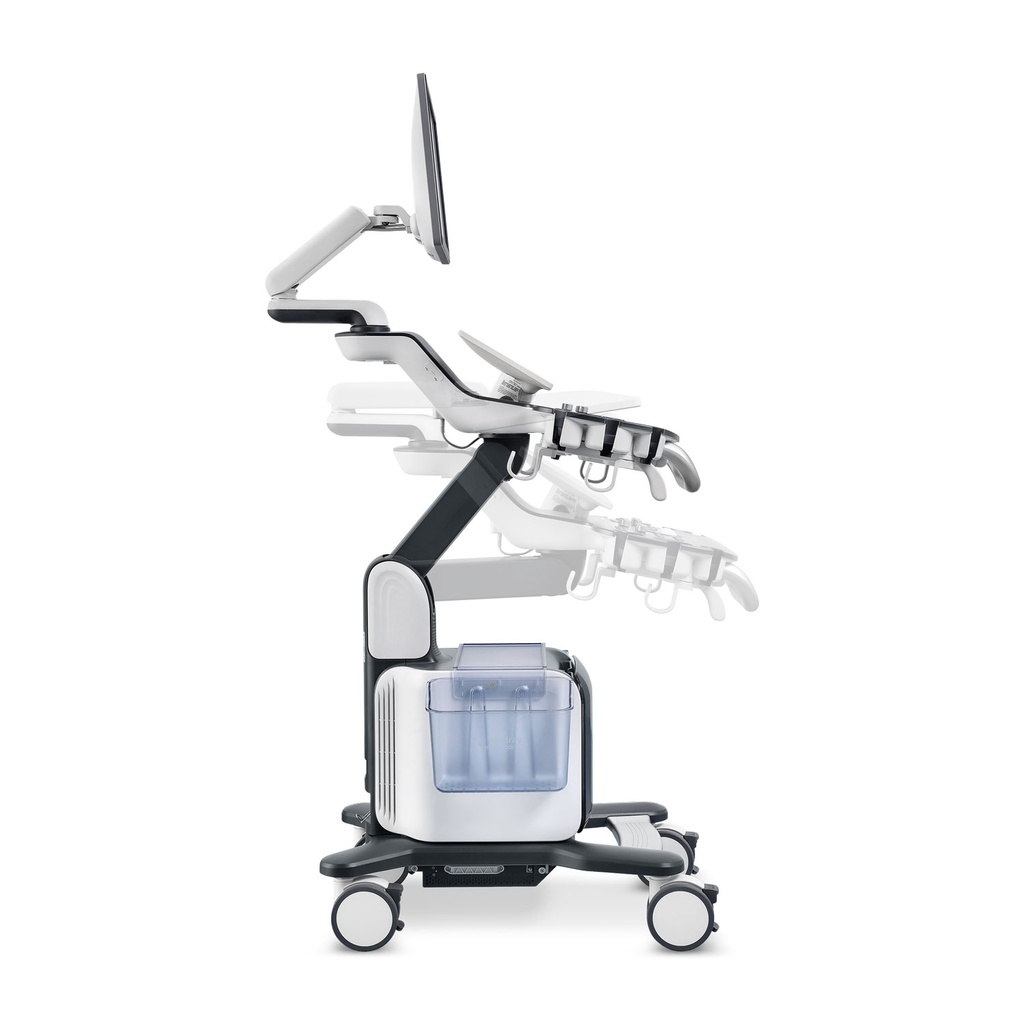

• 21.5" Full-HD LED monitor, with articulated arm
• Additional 13.3" control touchscreen
• Image export to Windows formats (DICOM Send, DICOM Worklist)
• Large internal storage: 1 TB (equivalent to approx. 1 million images)
• 4 Probe Connections
• Dimensions (in cm): W 54.3 x H 113 x D 81
• Weight: approx. 65 kg

Transducers purchased separately
