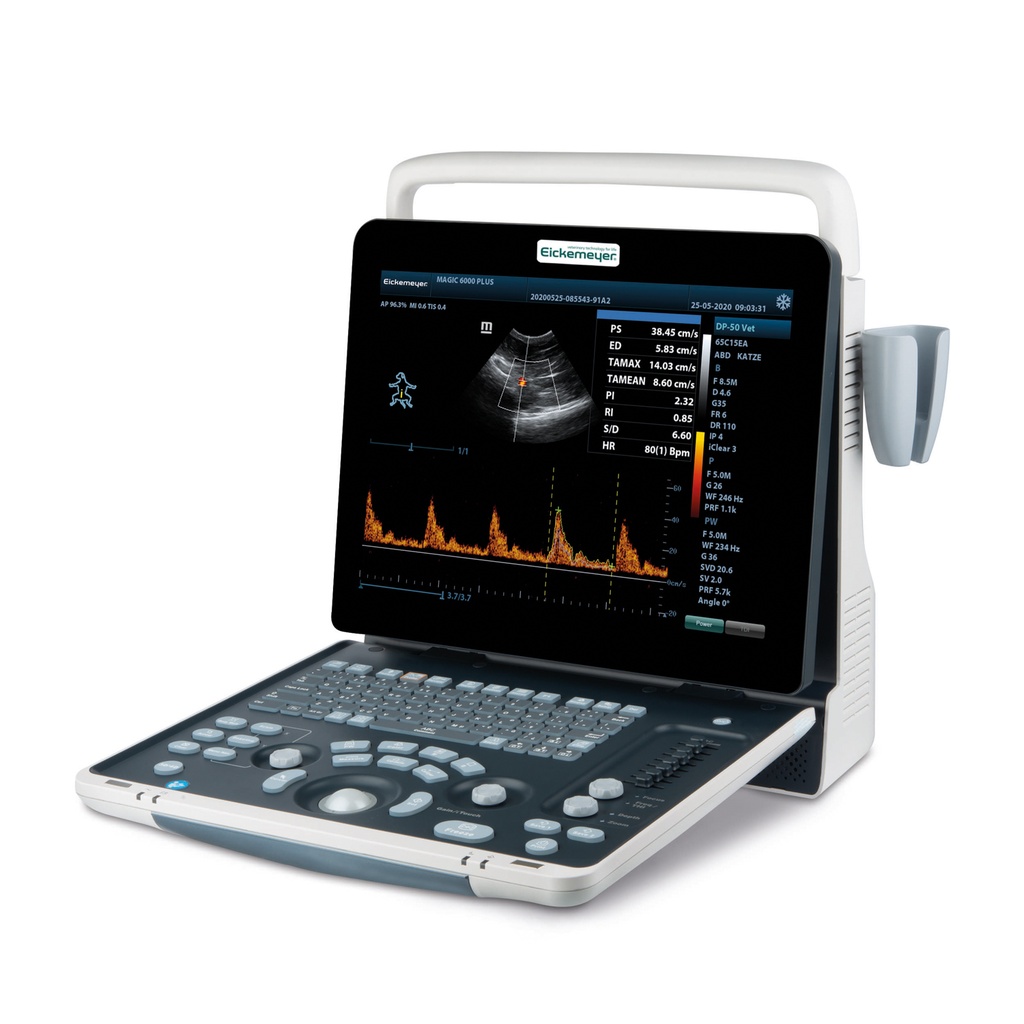

MAGIC 6000 PLUS Portable ultrasound machine

A new dimension in picture quality

The MAGIC 6000 PLUS not only opens a new dimension of image quality in small animal abdominal sonography, the device can also be used in equine gynaecology and orthopaedics. With powerful cine mode, you can always keep an overview even with restless patients under difficult conditions.

Features:

• Powerful hardware and a large number of image adjustment parameters create an unbeatable image quality in this price range
• Power Doppler to identify blood flow under different clinical conditions
• PW Doppler and "Auto Trace" reveal details of blood flow for a more complete diagnosis
• Easy to use thanks to combined keyboard and menu navigation
• Programmable buttons for personalised workflows
• The high-resolution 15 " display, which can be tilted by 60 degrees, provides a pleasant image display even at a further working distance
• A 500 GB storage capacity makes it easier to process the still images and video sequences later
• Second probe connection allows for a quick probe swap during examination- ideal for small animal practices
• Various application-specific measurements for abdomen and gynaecology including pregnancy calculation

Areas of Application:

Small animals: abdominal area

Horses: gynaecology, orthopaedics

Adjustment Aids for optimal work:

• iStation™ patient management, image and data storage
• iBeam™: improves image resolution in real time
• iClear™: improves image resolution
• iZoom™: Image display filling the monitor
• iTouch™: automated gain adjustment
• iScape™
• 8 times TGC: compensation of the signal strength of different layers
• PW and Power doppler
• Colour doppler optional (30374001)

Technical specifications:

• Monitor: over 38 cm diagonal, tiltable
• Cine mode with memory function
• Caption from library
• Image export from Windows formats (DICOM / DICOM worklist optional)
• Optional Colour Doppler upgrade
• 2 probe connections
• 4 USB ports
• Video storage in all applications
• Internal memory: 320 GB (corresponds to approx. 500,000 images)
• Long battery life up to 2 hours (optional 303721)
• Outputs: composite video, VGA, S-video
• Dimensions (in cm): W 36 x H 36 x D 15
• Weight: 8 kg
