TPLO saw jigs
The TPLO saw jig, guides a saw blade drilled through its axis via a guide sleeve and thus ensures a reproducible circular cut that is close to the center of the joint, the attachment point of the medial collateral ligament. This avoids undesirable valgus and varus positions of the tibia. Two saw jigs are available for saw blades R 9 - R 18 mm and R 21 - R 33 mm to ensure correct cutting guidance for very small and very large patients.
Cannulated TPLO saw blades
The longitudinally cannulated TPLO saw blades enable precise axial guidance of the saw blade via a guide mandrel when sawing and are optimally used in conjunction with our specially developed TPLO saw jig and cannulated saw blade set.
The TPLO saw blades have specially shaped recesses in the cutting blade. The triangular shaft on the saw blades makes them compatible with various motor systems.
The saw blades with a blade thickness of 0.6 mm are available in radii of 9, 12, 15, 18, 21, 24, 27, 30 and 33 mm.
Advantages:
- Minimal heating due to recesses in the cutting surface
- Reduced vibration
- Good visibility through perforation
- Standard triangular shank connection

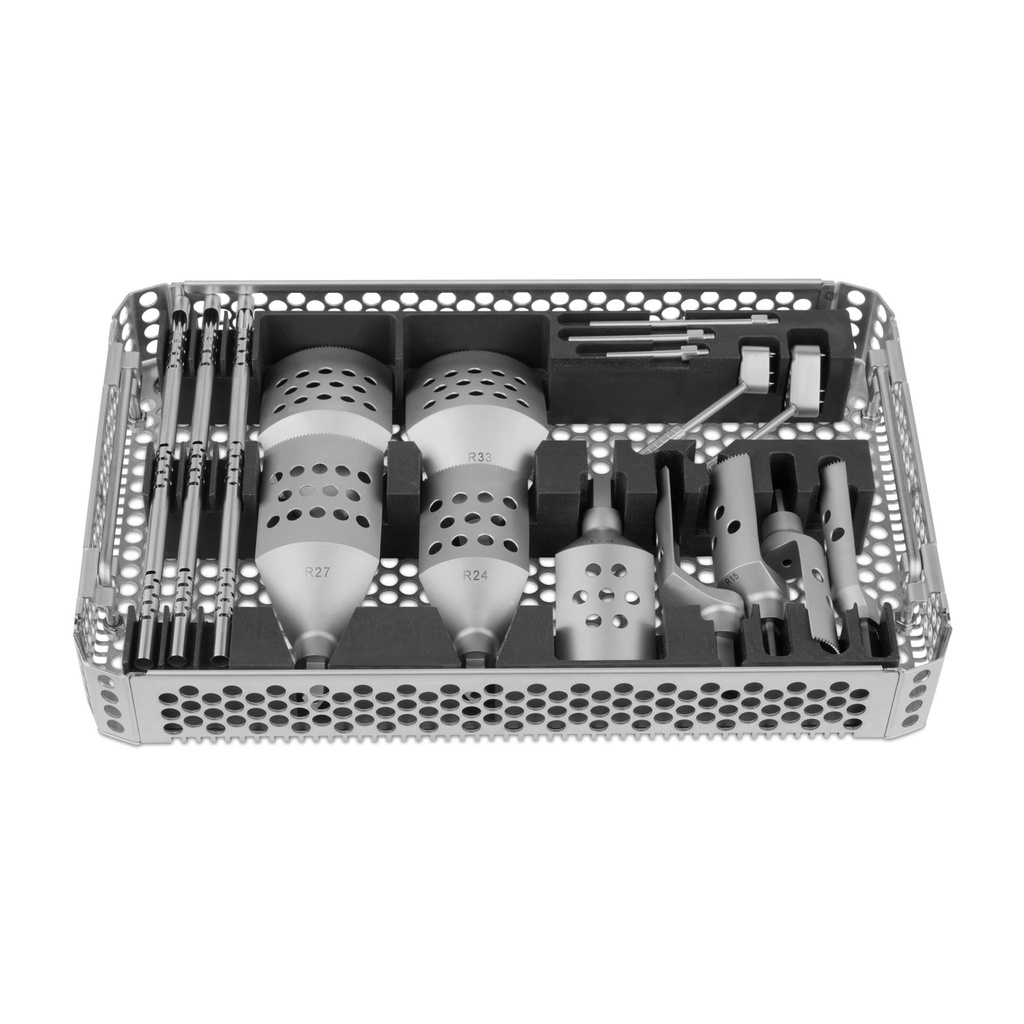

Set consisting of:
Sieve bowl for TPLO saw jigs and cannulated saw blades
- 2 TPLO saw jigs (R 9 - R 18 mm and R 21 - R 33 mm)
- 3 TPLO mandrels (short, medium, long)
- 15 KIRSCHNER drill wires, trocar / blunt, (Ø 1.1 mm, Ø 1.4 mm and Ø 2.0 mm)
- 3 cylinders for KIRSCHNER drill wires
-
9 cannulated TPLO saw blades (R 9 - R 33 mm)
-
Complete set
