The universal polyaxial osteosynthesis system for small animals
The newly developed EickLoxx Large is an angle-stable osteosynthesis system for dogs with a weight of approx. 15 - 45 kg.
Just like the EickLoxx Small, the system is characterised by a multi-axial placement of the precisely shaped screws and therefore combines the advantages of angle-stable systems and the possibility of screwing in screws at an angle of up to ± 15 °. Like the EickLoxx Small, the EickLoxx Large offers the advantage of rapid fracture healing with improved implant strength. It is for this reason that the removal of screws and plates is rarely indicated.
The biologically advantageous titanium S-shaped plates are available in ten different sizes. Thanks to special tools, the plates can be bent on all three planes. The long 12- and 14-hole plates as well as the long 34 to 40 mm screws (Ø 2.7 / 3.5 / 4.0) are not included in the basic set and can be added if required. Both plates can be integrated into the implant tray. There is space in the implant tray for the long plates and capacity for the module for the long screws in the instrument tray.
Characteristics
- The EickLoxx bone plates minimise contact with the periosteum and thus reduce the iatrogenic load on the bone perfusion, as is common with conventional compression plates
- Maintaining perfusion significantly reduces the risk of infection and accelerates bone healing
- Resistance to infections is also increased by the biocompatibility of titanium and the lack of fretting
Biological benefits
- Reduces damage to the vascular supply
- Increased resistance to infection
- Accelerated healing

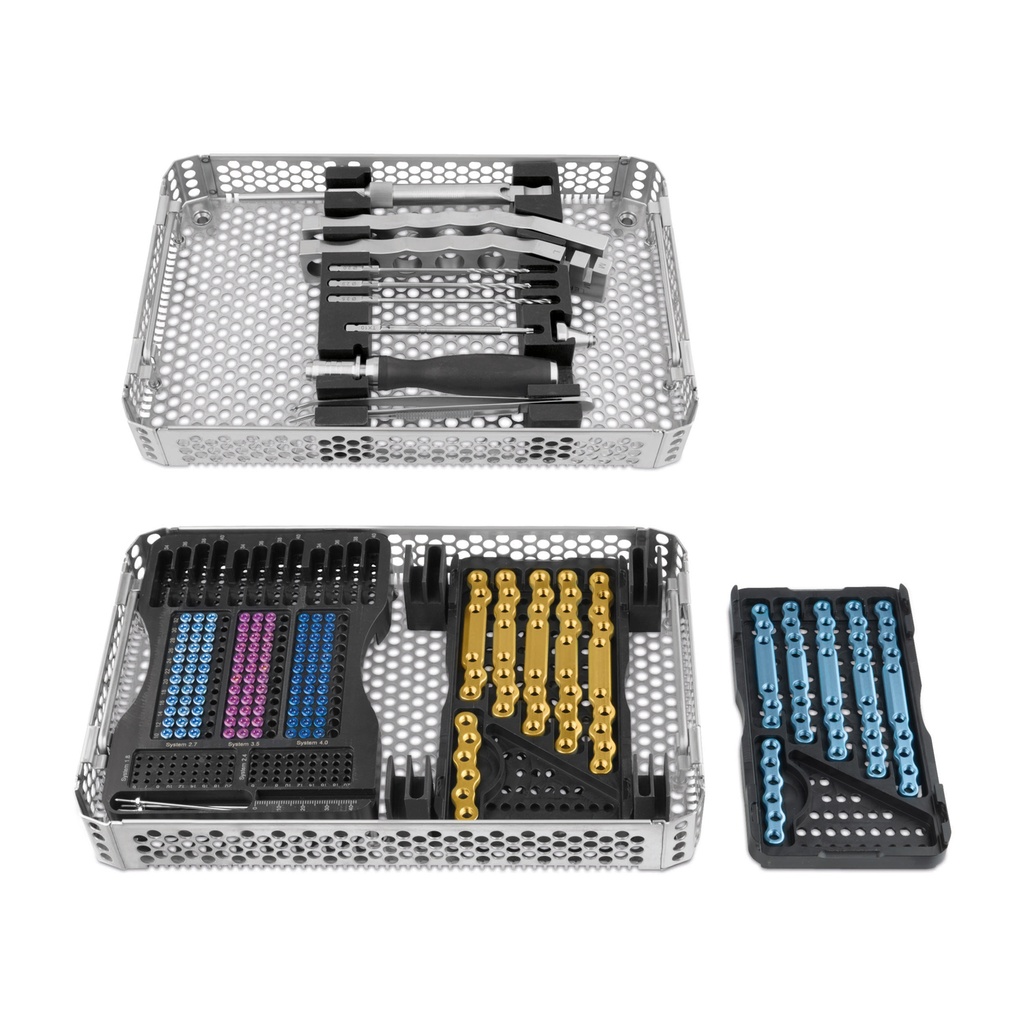

Complete set, consisting of:
- EickLoxx Large Instrument Tray
- EickLoxx Large Implant Tray
- EickLoxx Large Screw Rack
- 2 EickLoxx Large bone plate modules
- Eickloxx bending levers (pair)
- 3 Twist drills with AO quick coupling ( Ø 2.0 mm, Ø 2.5 mm & Ø 2.9 mm)
- Screwdriver blade (Torx 10)
- Drill guide funnel system 2.7 / 3.5 / 4.0
- Plate screw holding forceps
- Silicone screwdriver handle
- 4 plates positioning pins (Ø 1.4 mm, Length 63 mm)
- Depth gauge
- 6 EickLoxx Large bone plates 4.0 mm, gold (6 - 10 holes)
- 6 EickLoxx Large bone plates 4.3 mm, light blue (6 - 10 holes)
- 36 titanium locking screws Ø 2.7 mm, light blue (from 10 - 32 mm)
- 36 titanium locking screws Ø 3.5 mm, magenta (from 10 - 32 mm)
- 36 titanium locking screws Ø 4.0 mm, blue (from 10 - 32 mm)
- Container: Dimensions (in mm): L 312 x W 183 x H 122
