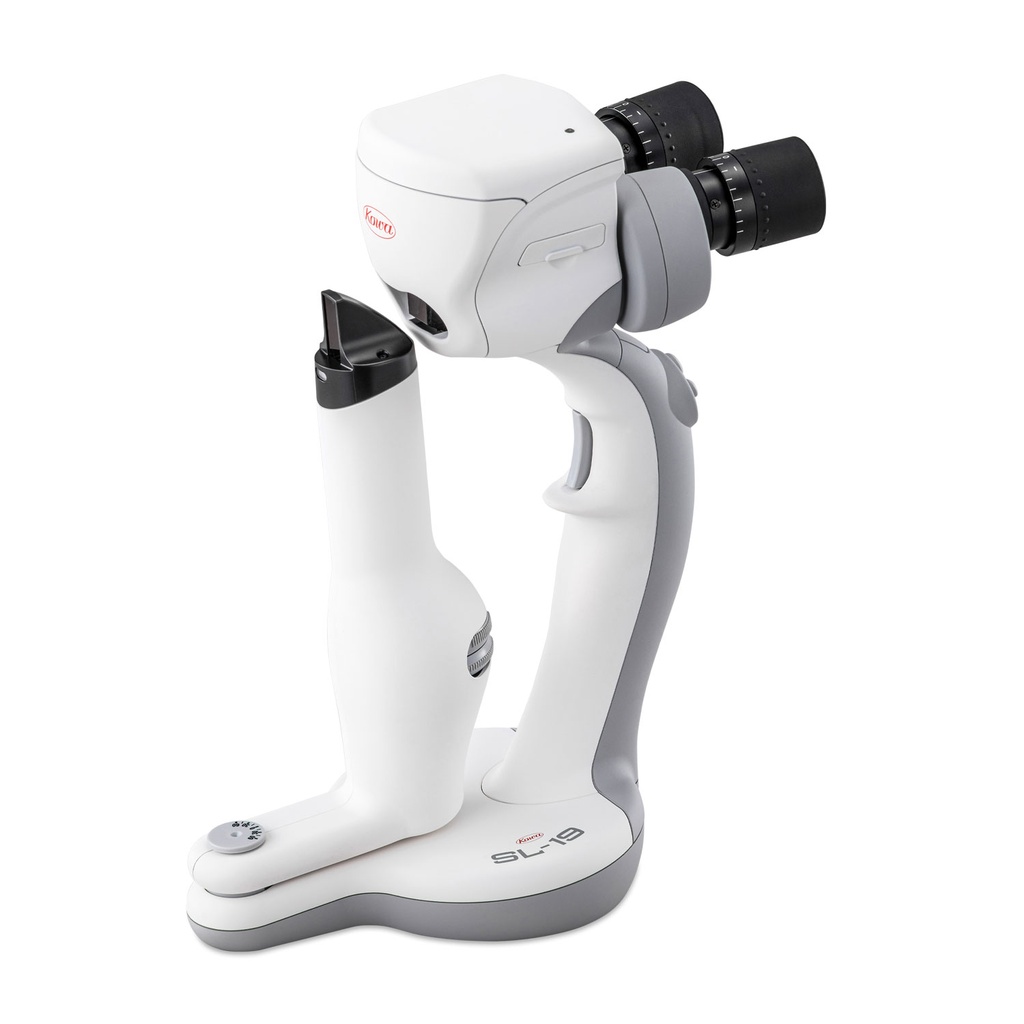

KOWA SL-19 plus hand slit lamp, white, with integrated camera

The latest development from KOWA, the hand-held slit lamp SL-19 plus, impresses with its well-known ergonomic shape and light weight with an integrated, high-resolution camera. With a simple hand movement, videos can be recorded during the examination, which are automatically transmitted to an iPad via WiFi. Using special application software, these videos can be analyzed and further processed on the iPad. High-resolution still images can also be extracted from the videos, which can be individually selected, saved and forwarded. With the new KOWA SL-19 plus handheld slit lamp, your examination results are always optimally analyzed and documented.

• Record button can be operated with a simple hand movement
• Backlight and blue light illumination for fluorescence observation
• Use of backlight simultaneously with slit light possible
• Backlight and blue light lighting adjustable in three brightness levels with one hand
• Infinitely adjustable slot length (1.5 – 12 mm)
• Barrier filter B for observation with fluorescein under blue light to be attached with a filter tape

Technical data

• Magnification: 10x
• Working distance: approx. 100 mm
• Effective field of view: Ø 15 mm at 10x magnification
• Spot size: Ø 1, Ø 5, Ø 12 mm (gap length infinitely adjustable from 1.5 – 12 mm)
• Light intensity: 200 – 20,000 lux (infinitely adjustable)
• Adjustment range of pupil distance: 55 to 72 mm
• Diopter range: -8 to +5 D
• Camera field of view: approx. 27 to 15 mm
• Effective pixel count: approx. 2 megapixels
• Wireless Lan interface (IEEE 802.11 a/b/g/n)
• White LED slit light as light source
• Background light: White and blue LED in 3-stage circuit, can be used separately from slit light
• Power supply: 3x AA Ni-MH batteries or rechargeable batteries, (DC 3.0 - 4.8 V), power consumption up to 6 VA
• Indicator flashes orange when battery level is low
• A camera indicator shows the operating status of the camera
• Operating time: approx. 8.5 hours if the device is switched off and disconnected from the iPad after each use, approx. 3.5 hours at full power without disconnecting from the iPad
• Dimensions (in mm): D 197 x W 107 x H 255
• Weight (excluding batteries): 730g
• Color white
• Scope of delivery: SL-19 plus, barrier filter B and filter band (iPad and batteries not included)
